APSTAR-7

APSTAR-7 Characteristics

Model TAS SB 4000C2
Orbit position 76.5°E
Mission life >15 years
Station keeping ±0.05° (E/W, N/S)
Payload C-band Ku-band

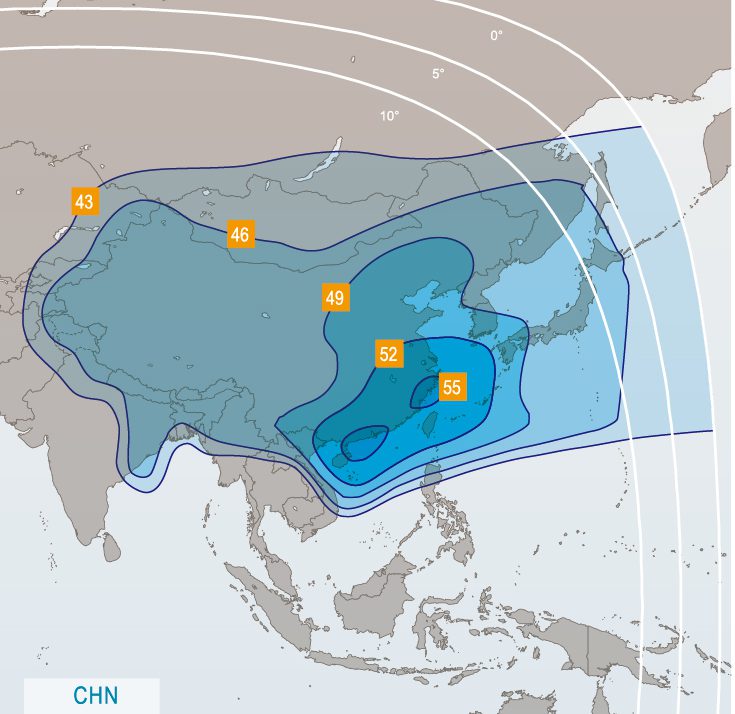

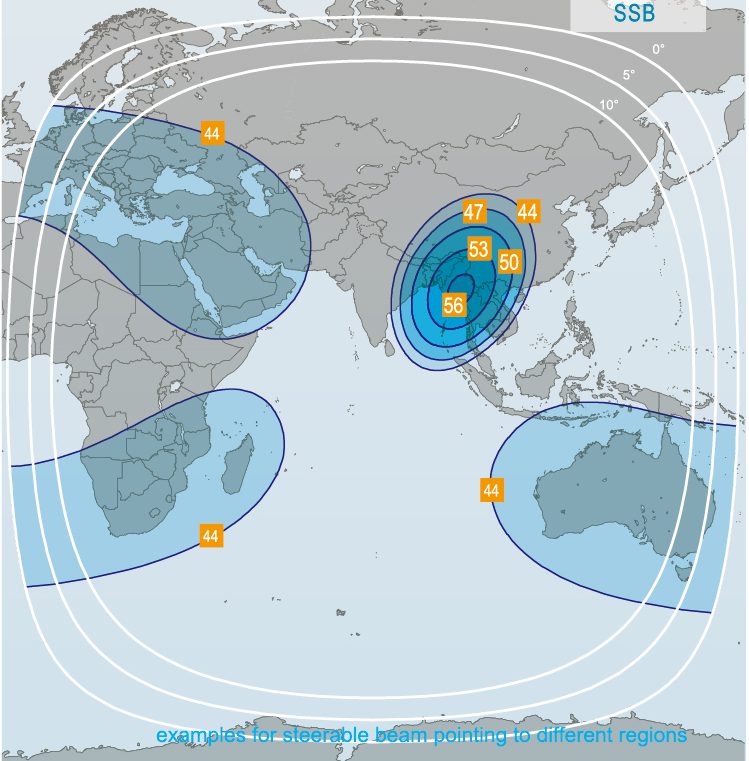

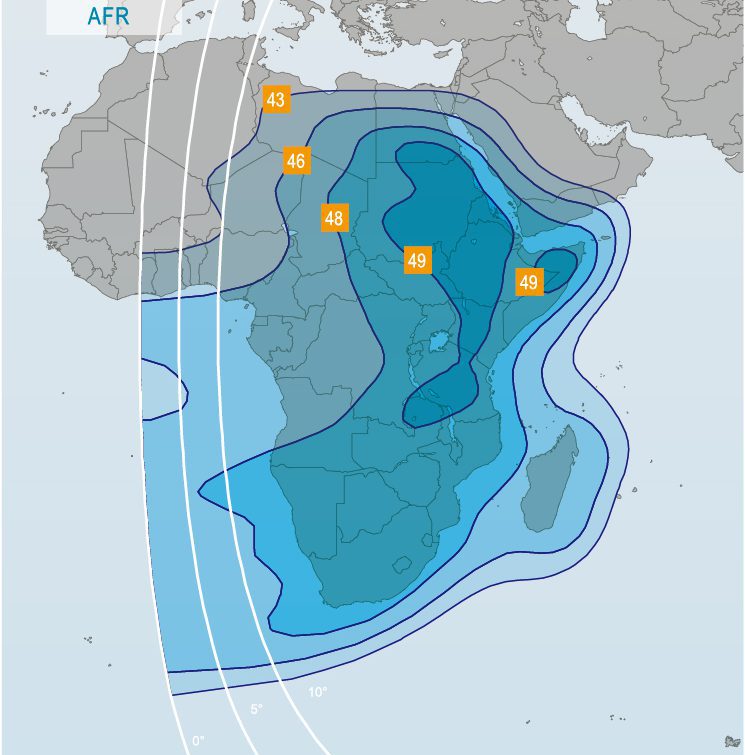

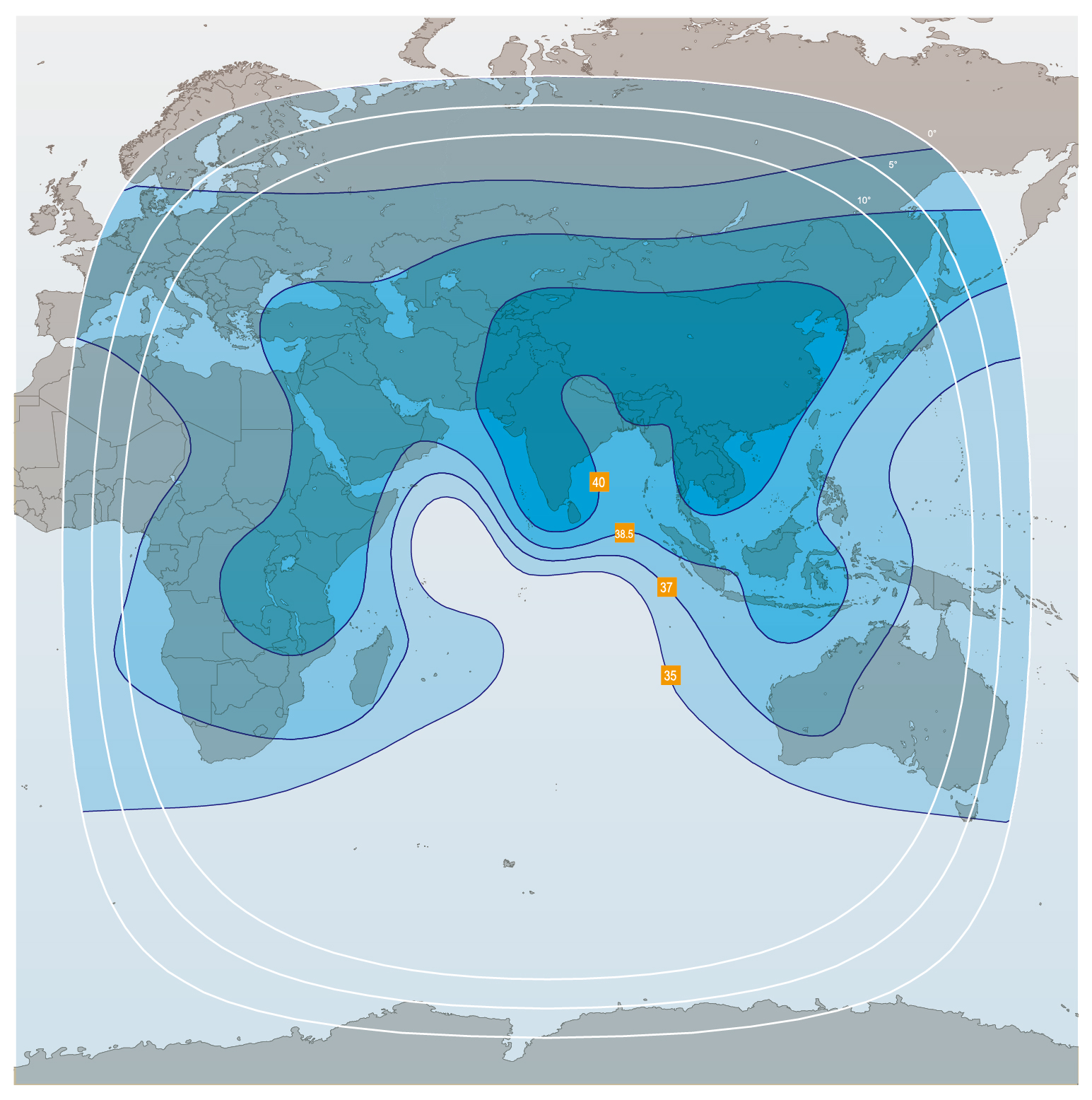

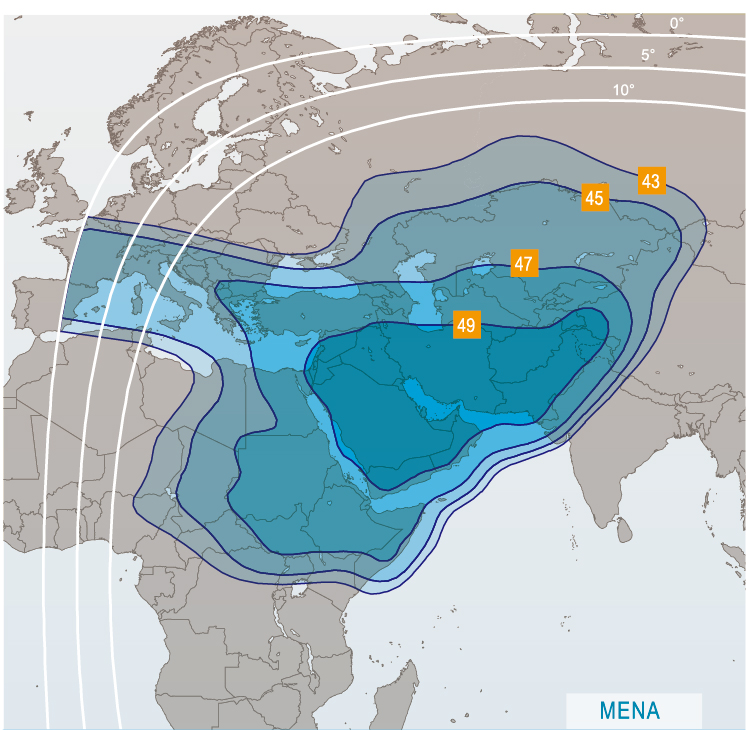

Coverage Asia, Australia, Europe,Africa China, Middle East, Africa, steerable beam
Transponder 28 28
EIRP 32~41dBW 43~56dBW
G/T -10~+1dB/K -4~+11dB/K
Gain control FGM and ALC FGM and ALC
Polarization Dual linear polarization Dual linear polarization
Cross-strap Cross-strap between all 4 Ku beams
